DE SERIES

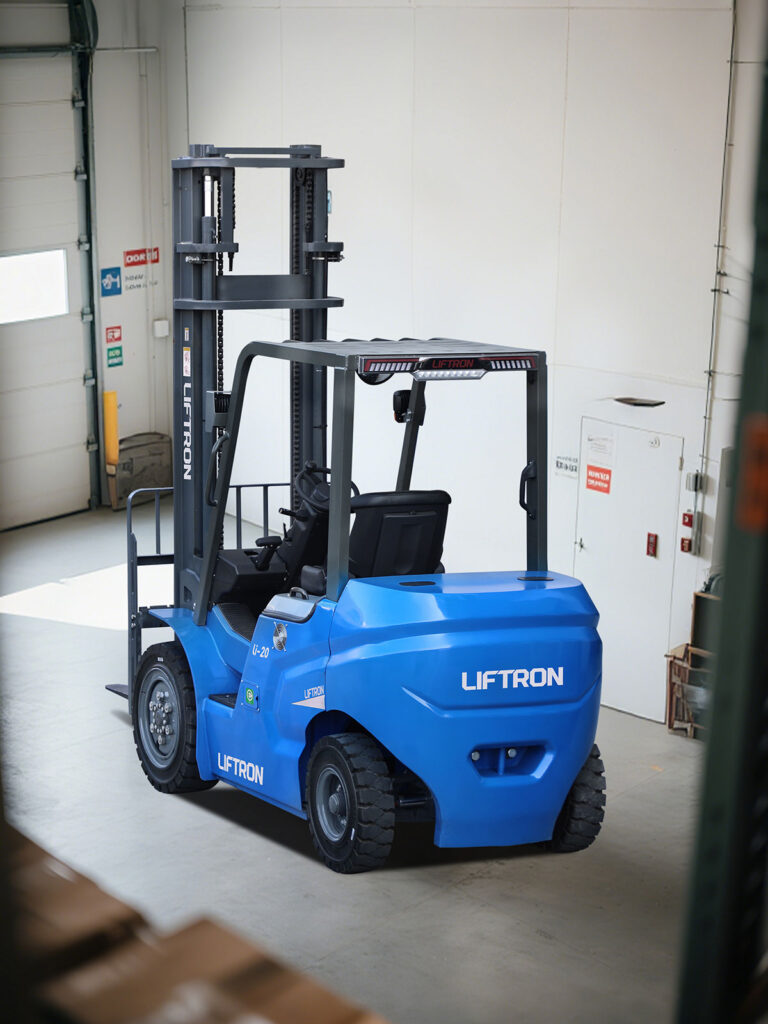

2.0-3.5T Lithium Ion Forklift
DE series lithium ion forklift built with operator comfort, productivity, efficiency, and safety in mind. From high-capacity forklifts to hand pallet jacks, the whole spectrum of material handling equipment is available. DE series counterbalance forklift the solution for any lifting, moving, stacking, picking, or handling demands you may have.
STANDARD FUNCTIONS
◆ High ground clearance with solid tires for excellent terrain adaptability
◆ 9-inch full-color display providing multiple real-time performance metrics
◆ Standard USB charging port to keep devices powered anytime.
◆ Built-in wireless phone charging for added convenience
◆ Optional automatic charge/discharge heating system for lithium batteries
◆ High-temperature protection system for safe and reliable operation
◆ High-efficiency permanent magnet synchronous motor with large-ratio gearbox for powerful performance
◆ Standard reverse assist handle and audible reverse alarm for safer maneuvering
◆ Modular powertrain with a clean, accessible layout for easy maintenance
◆ Automatic reverse lights standard, improving nighttime safety.
◆ Premium semi-wraparound seat for superior comfort Comfort-focused design keeps you productive all day long
POWERFUL PERFORMANCE
HIGH SECURITY
MAINTENANCE FREE
ZERO EMISSIONS
ALL-TEMP READY/ WORK in ALL-TEMP
ADVANTAGE
Advanced Ergonomics Layout
Advanced Ergonomics Layout is designed to maximize operator comfort, control, and productivity throughout every shift. The spacious cab features an intuitive control layout, adjustment steering column, and optimized pedal placement to reduce physical strain and support natural body movement.

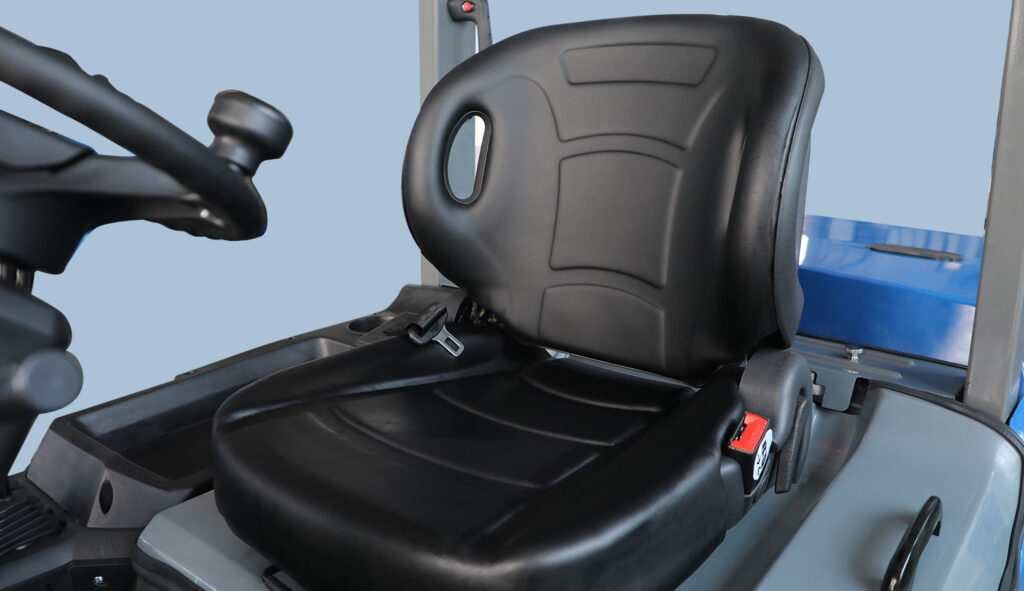

Luxury Seat
Single luxury seat equipped with a secure seatbelt and an integrated handle for stable entry and exit. The centered design improves visibility, while the handle offers added safety and confidence when climbing in or out of the cab. Together with the intuitive control placement and low-vibration environment, this ergonomic setup enhances operator comfort, safety, and overall productivity.

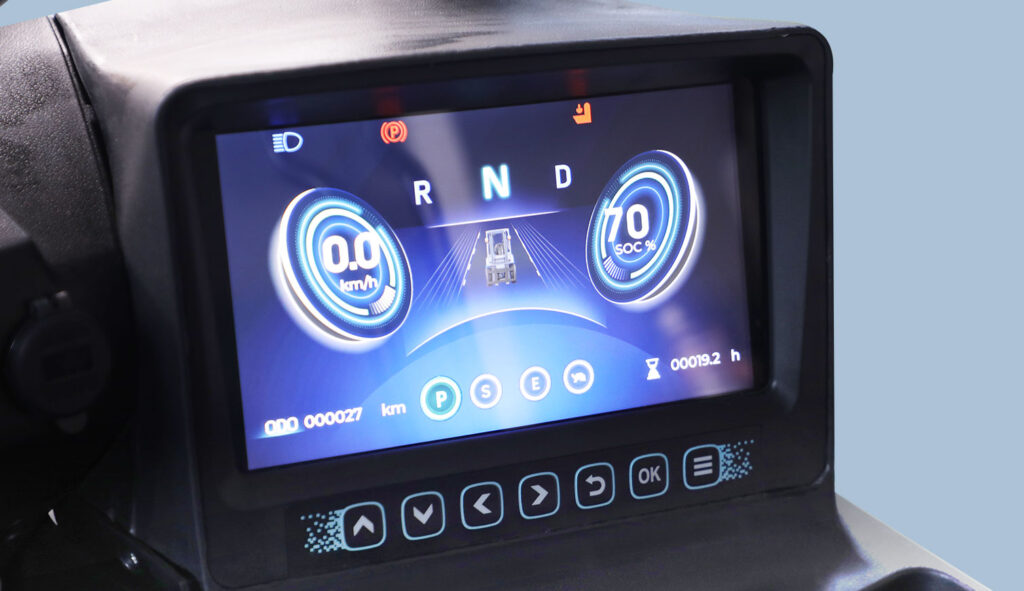

9-Inch Large Screen
A modern touchscreen that clearly displays essential operating information, from speed and battery status to maintenance alerts. The intuitive interface allows operators to access functions quickly without distraction, enhancing workflow and safety. Paired with a high-definition backup camera, the system greatly improves rear visibility, especially in tight warehouse aisles or busy loading areas.

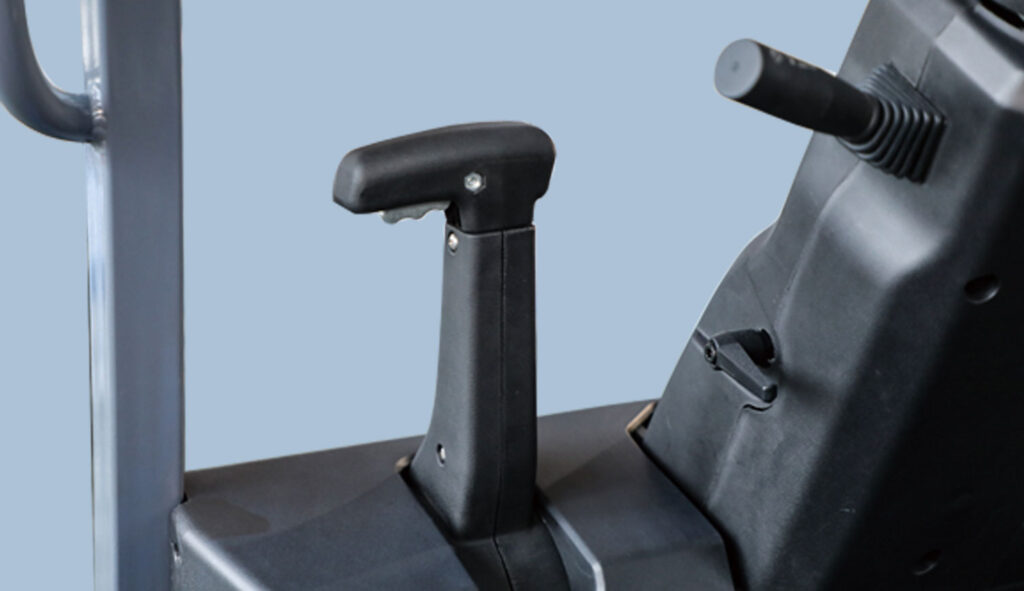

Ergonomic Handbrake
An ergonomic handbrake is designed to provide operators with safer, easier, and more comfortable control during daily forklift use. Positioned within natural reach, it allows smooth engagement and release with minimal effort, reducing wrist and arm strain during repetitive operations. Its contoured grip enhances stability and control.

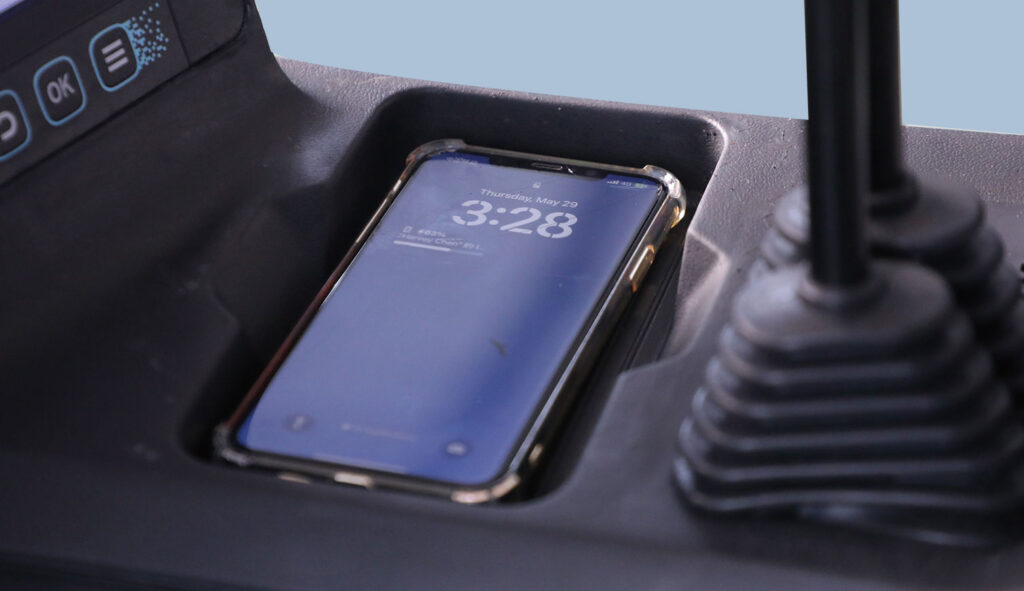

Wireless Charging
Wireless charging for mobile phones provides consumers with a simple, cordless way to keep their devices charged throughout the workday. Because it is integrated directly into the forklift’s console and allows for quick drop-and-charge, it eliminates clutter and the need for charging cords.

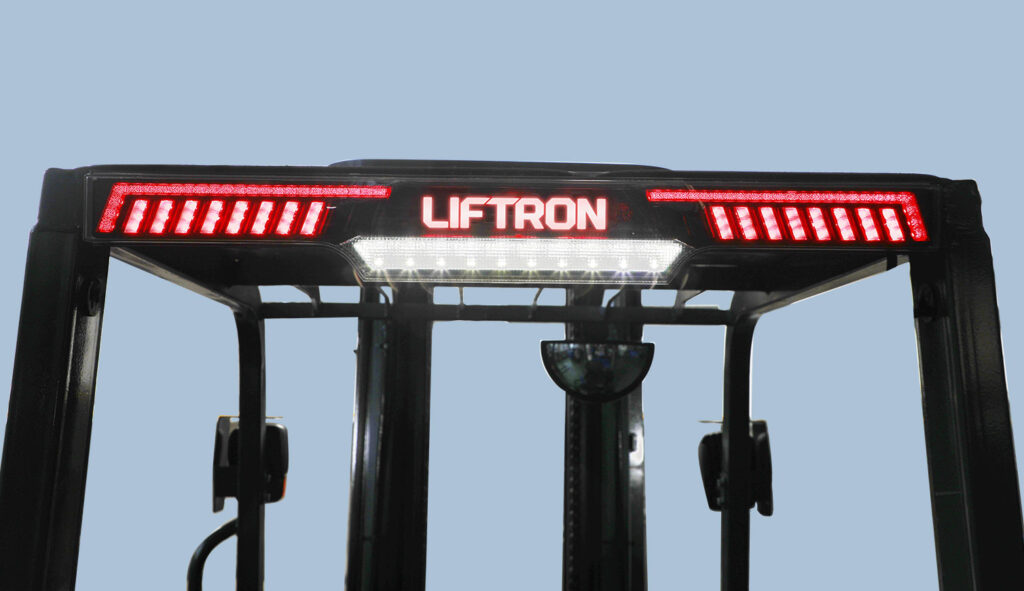

Standard Automotivestyle Taillights
Automotive-Style Taillights on a forklift combine safety, durability, and modern design. They provide bright, highly visible rear lighting that clearly signals braking and vehicle presence to pedestrians and other operators, reducing the risk of accidents in busy work environments. Designed with automotive-inspired styling, these taillights not only enhance functionality but also give the forklift a sleek, professional appearance.

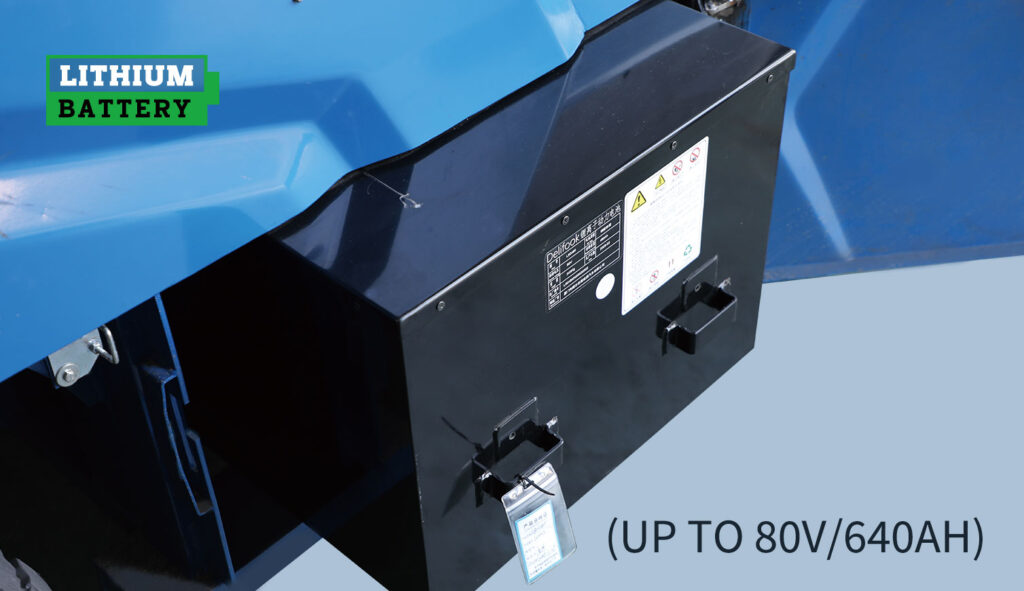

Convenient Battery Swapping with Large-Capacity Lithium Batteries
A Lithium Battery offers powerful, efficient, and low-maintenance energy for modern forklifts. It delivers longer run times, faster charging, and consistent performance without the need for watering or frequent upkeep. With high energy density and stable output, lithium technology supports demanding multi-shift operations while reducing downtime. Its clean, maintenance-free design eliminates emissions and acid-related risks, creating a safer, more environmentally friendly workspace.

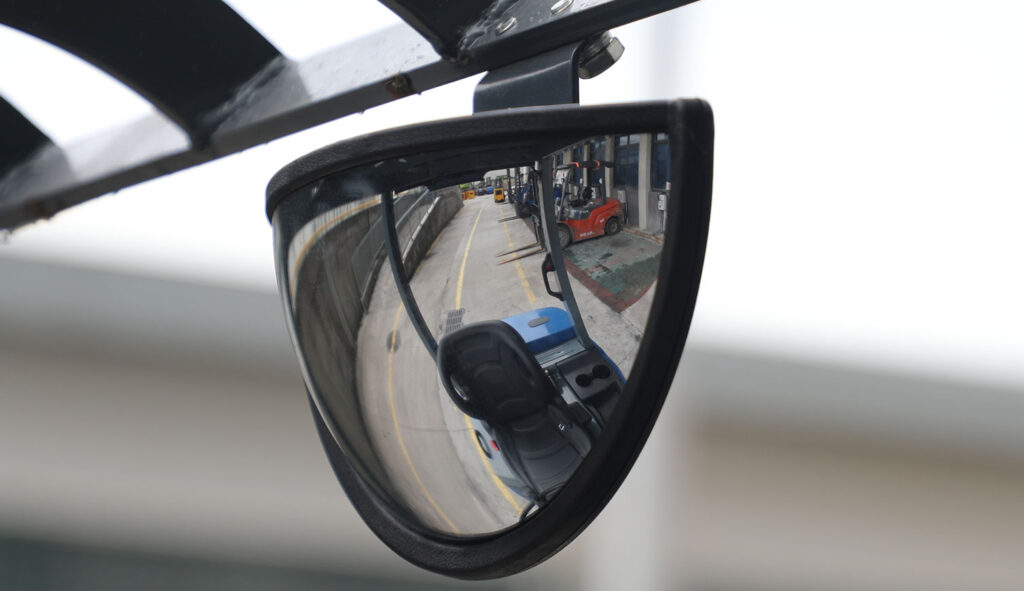

Panoramic Mirror
A Panoramic Mirror enhances forklift safety by providing a wide, expanded field of view that significantly reduces blind spots. Positioned strategically within the cab, it allows operators to monitor surrounding activity—such as pedestrians, obstacles, and nearby equipment—without constantly turning their heads. This improved visibility supports safer maneuvering in tight aisles, busy warehouses, and outdoor worksites.

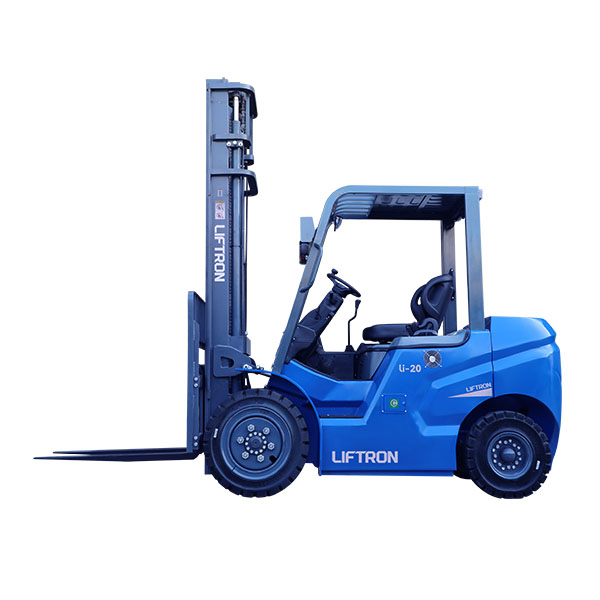

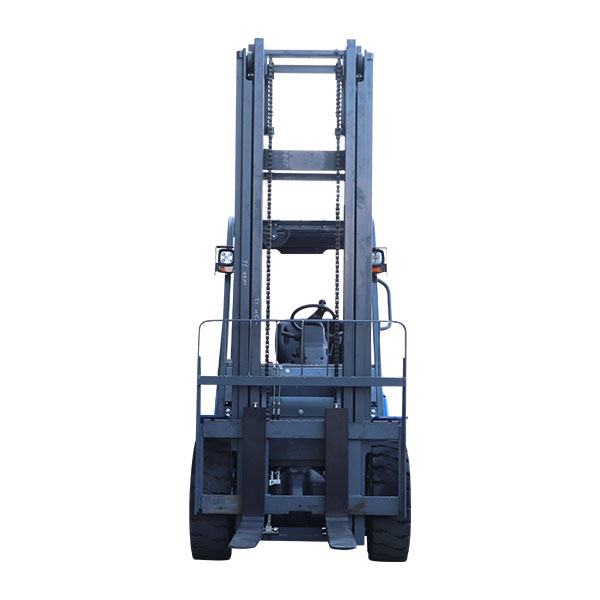

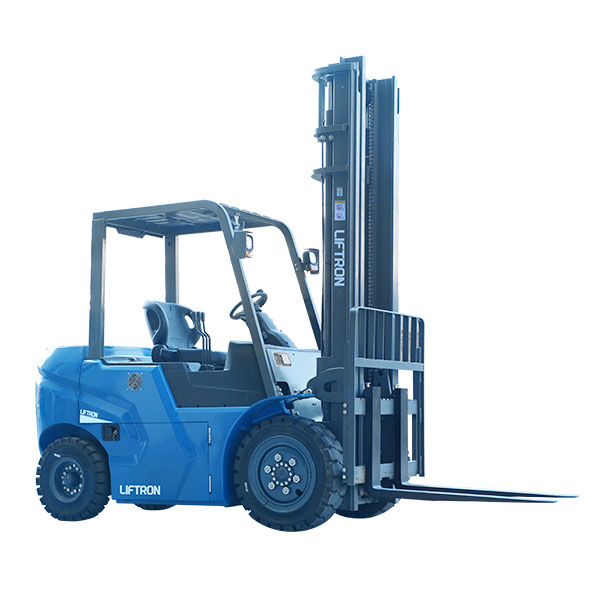

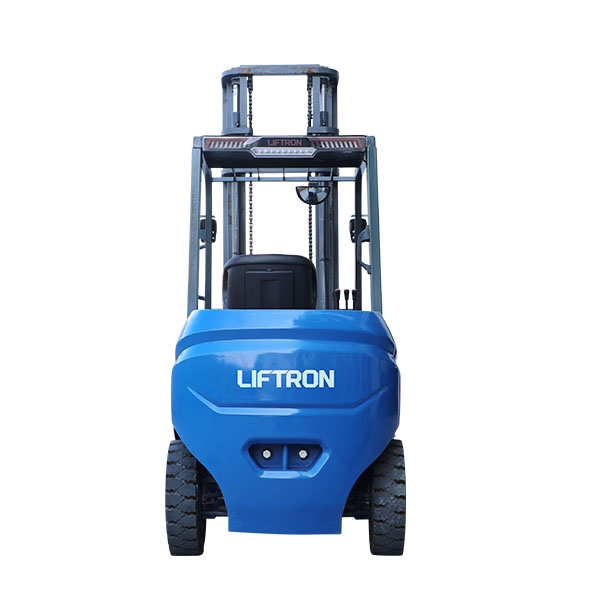

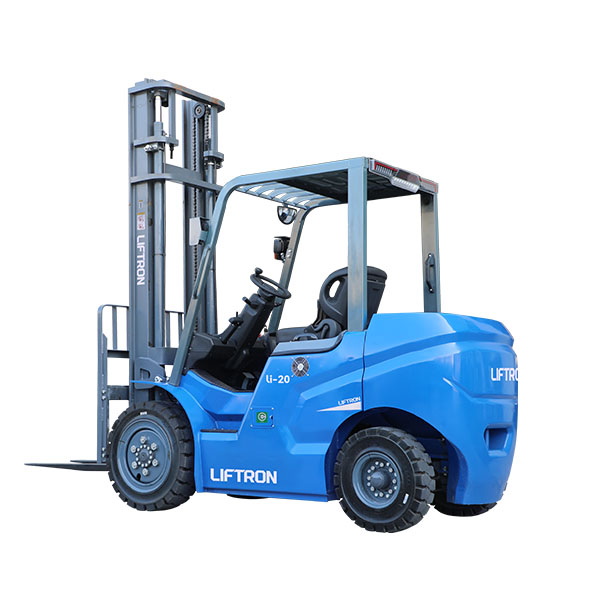

GALLERY
DIMENSIONS
Rated Lifting Capacity
2000(kg)
Ｍax Lifting Speed
(No Load/Full Load)
360/280(mm/s)
Maximum Travel Speeds
(No Load/Full Load)
14/12.5(km/h)
Min Turning Radius
2273(mm)
Weights
(With Battery)
3300(kg)
Length
(NO Fork)
2472(mm)
WidthxHeight
1166(mm)
Height
2090(mm)
Fork Size
(Lx W xT)
1070*120*40(mm)
Hydraulic System Working Pressure
18(MPA)
Rated Lifting Capacity
2500(kg)
Ｍax Lifting Speed
(No Load/Full Load)
360/270(mm/s)
Maximum Travel Speeds
(No Load/Full Load)
14/12.5(km/h)
Min Turning Radius
2273(mm)
Weights
(With Battery)
3650(kg)
Length
(NO Fork)
2472(mm)
WidthxHeight
1166(mm)
Height
2090(mm)
Fork Size
(Lx W xT)
1070*120*40(mm)
Hydraulic System Working Pressure
18(MPA)
Rated Lifting Capacity
3000(kg)
Ｍax Lifting Speed
(No Load/Full Load)
380/320 mm/s)
Maximum Travel Speeds
(No Load/Full Load)
14/12.5(km/h)
Min Turning Radius
2418(mm)
Weights
(With Battery)
4350(kg)
Length
(NO Fork)
2650(mm)
WidthxHeight
1240(mm)
Height
2115(mm)
Fork Size
(Lx W xT)
1070*120*45(mm)
Hydraulic System Working Pressure
18(MPA)
Rated Lifting Capacity
3500(kg)
Ｍax Lifting Speed
(No Load/Full Load)
380/300 mm/s)
Maximum Travel Speeds
(No Load/Full Load)
14/12.5(km/h)
Min Turning Radius
2418(mm)
Weights
(With Battery)
4780(kg)
Length
(NO Fork)
2650(mm)
WidthxHeight
1240(mm)
Height
2115(mm)
Fork Size
(Lx W xT)
