DL SERIES
3.0-3.5T Lithium Ion Forklift
In fast-paced operations, DL SERIES Lithium Ion Forklift also offer longer operating time between charges, supporting continuous workflow with fewer interruptions. DL SERIES Counterbalance Forklift get more power for heavy loads, more durability for demanding and harsh environments, more traction on uneven surfaces, and more material-handling strength to conquer everything on your to-do list with confidence.
STANDARD FUNCTIONS
◆ High ground clearance with solid tires for excellent terrain adaptability
◆ 9-inch full-color display providing multiple real-time performance metrics
◆ Standard USB charging port to keep devices powered anytime.
◆ Built-in wireless phone charging for added convenience
◆ Optional automatic charge/discharge heating system for lithium batteries
◆ High-temperature protection system for safe and reliable operation
◆ High-efficiency permanent magnet synchronous motor with large-ratio gearbox for powerful performance
◆ Standard reverse assist handle and audible reverse alarm for safer maneuvering
◆ Modular powertrain with a clean, accessible layout for easy maintenance
◆ Automatic reverse lights standard, improving nighttime safety.
◆ Premium semi-wraparound seat for superior comfort Comfort-focused design keeps you productive all day long
POWERFUL PERFORMANCE
HIGH SECURITY
MAINTENANCE FREE
ZERO EMISSIONS
ALL-TEMP READY/ WORK in ALL-TEMP
ADVANTAGE
Advanced Ergonomics Layout
The goal of the Advanced Ergonomics Layout is to optimize operator comfort, control, and productivity during each shift. To lessen physical strain and promote natural body movement, the roomy cab has an adjustable steering column, an easy-to-use control arrangement, and well-placed pedals.
Luxury Seat
Single luxurious seat with an integrated handle for steady access and departure and a fastening seatbelt. The handle provides more security and assurance while getting in or out of the cab, and the centered shape enhances visibility. This ergonomic configuration improves operator comfort, safety, and overall productivity in addition to the low vibration environment and easy-to-use control location.

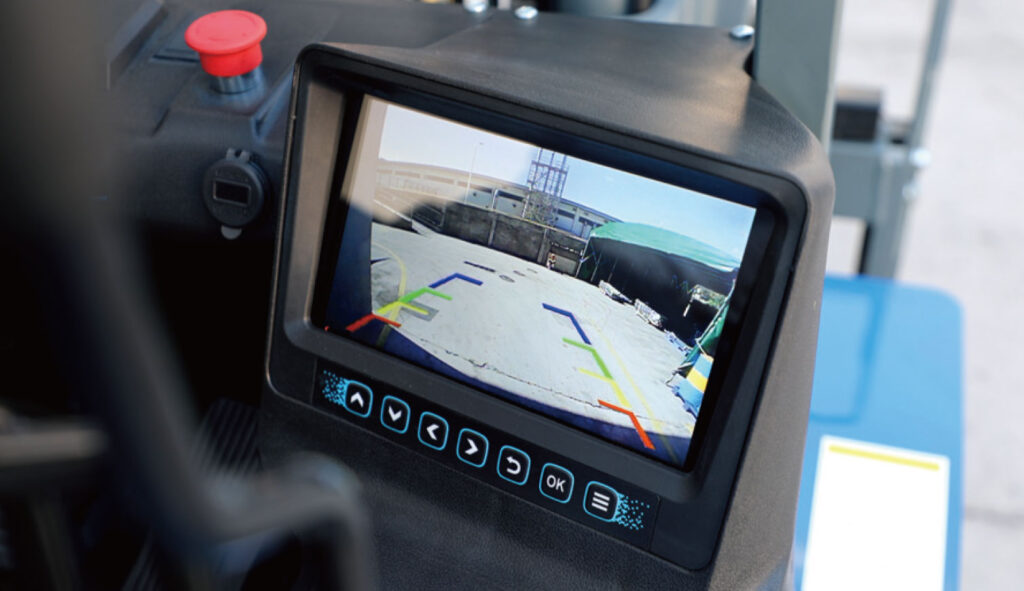

Configuration Includes A 9-Inch Large Screen With a Reversing Camera
A contemporary touchscreen that clearly shows all of the necessary operational data, including maintenance alerts, speed, and battery condition. The user-friendly interface improves efficiency and safety by enabling operators to rapidly and distraction-free access functions. The device significantly increases rear visibility when used with a high-definition backup camera, particularly in crowded loading zones or narrow warehouse aisles.
Ergonomic Handbrake
When using a forklift on a regular basis, an ergonomic handbrake is intended to give operators safer, easier, and more comfortable control. It reduces wrist and arm strain during repetitive tasks by being positioned within natural reach and enabling seamless engagement and release with little effort. Its curved grip improves control and stability.
Wireless Charging
Mobile phone wireless charging gives users an easy, cable-free solution to keep their gadgets charged during the workday. It reduces clutter and does away with the need for charging wires because it is built right into the forklift’s console and enables rapid drop-and-charge capabilities.

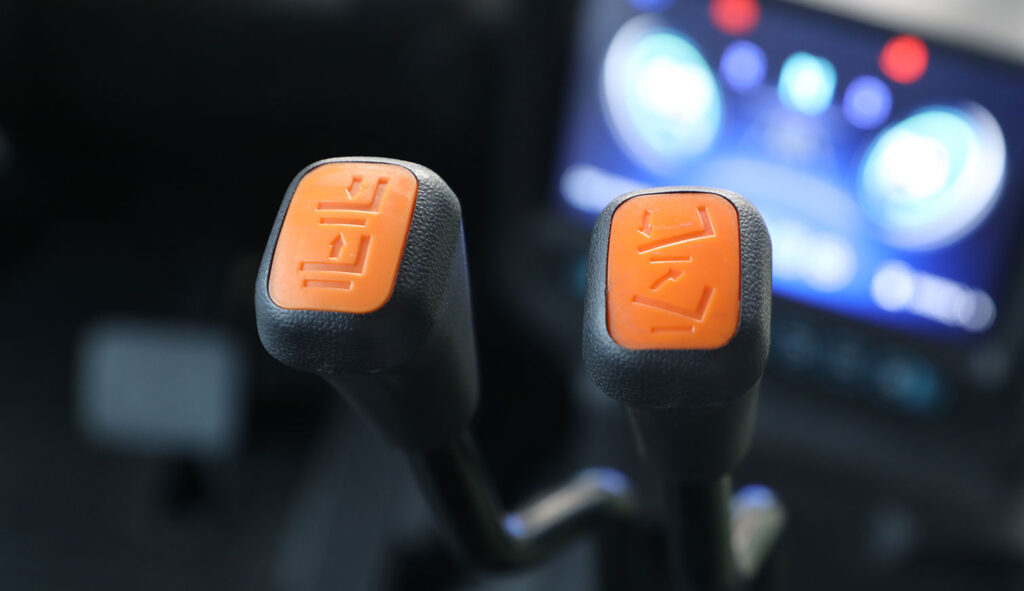

Directional Control Lever
The Directional Control Lever offers smooth, effortless shifting between forward and reverse, enabling operators to change direction with precision and ease. Ergonomically positioned within comfortable reach, it minimizes strain and streamlines workflow, especially in high-frequency maneuvering. Its responsive design enhances control in tight aisles and busy worksites, improving both safety and operational efficiency.
Convenient Battery Swapping with Large-Capacity Lithium Batteries
For contemporary forklifts, a lithium battery provides strong, effective, and low-maintenance energy. Longer run periods, quicker charging, and reliable performance are all provided without the need for regular maintenance. Lithium technology reduces downtime while supporting demanding multi-shift operations because to its high energy density and consistent output.

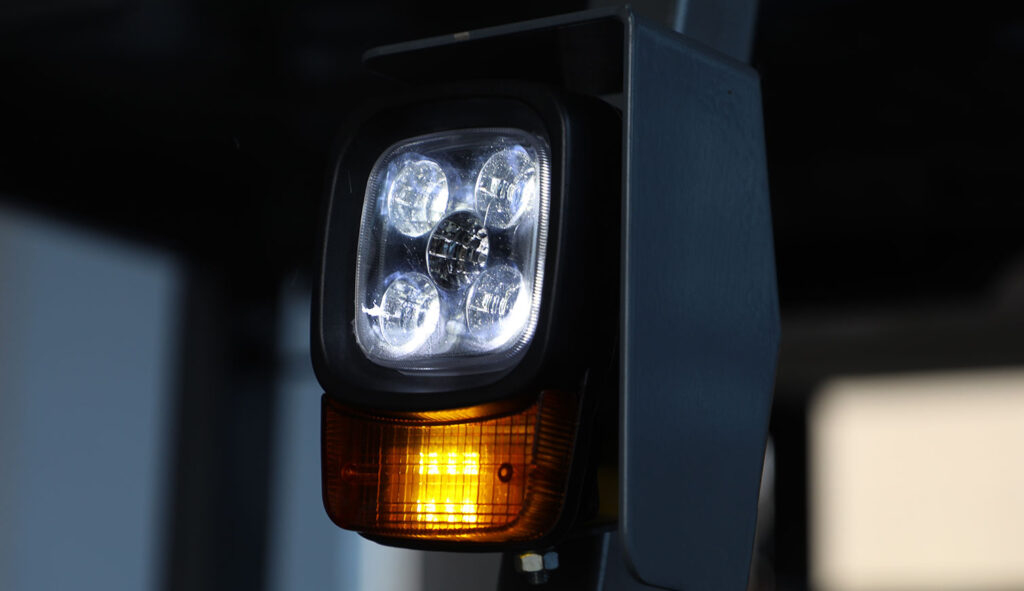

LED Headlights
LED Headlights deliver crisp, high-intensity illumination that enhances visibility in dim, indoor, or outdoor conditions, helping operators work with greater accuracy and safety. With clearer sightlines and consistent lighting, every shift becomes safer and more productive.

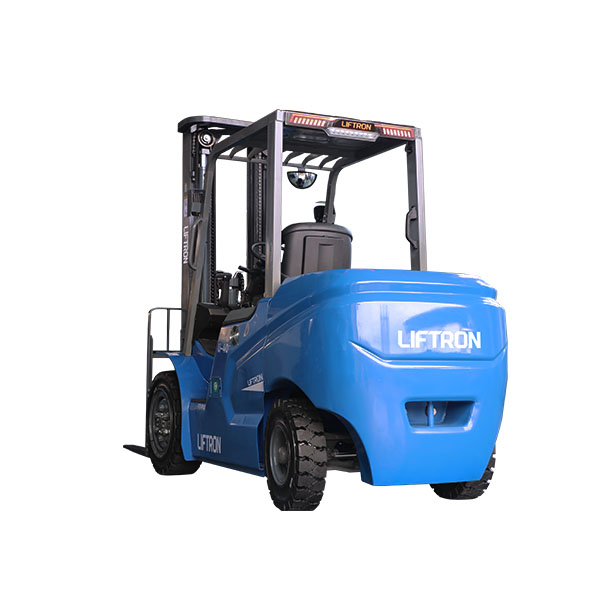

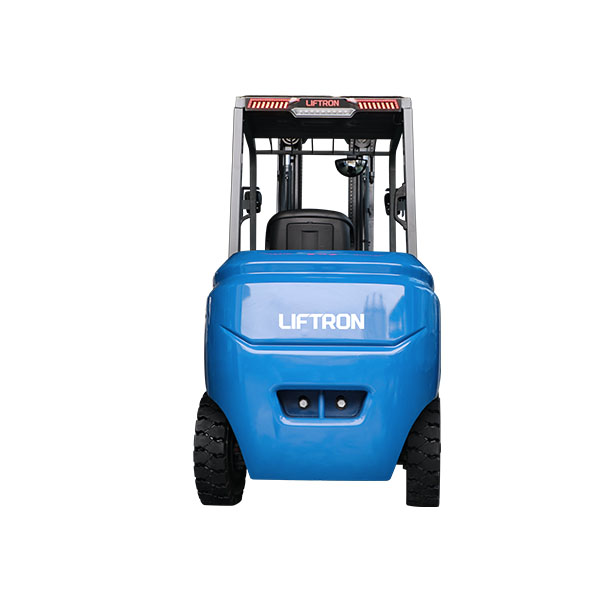

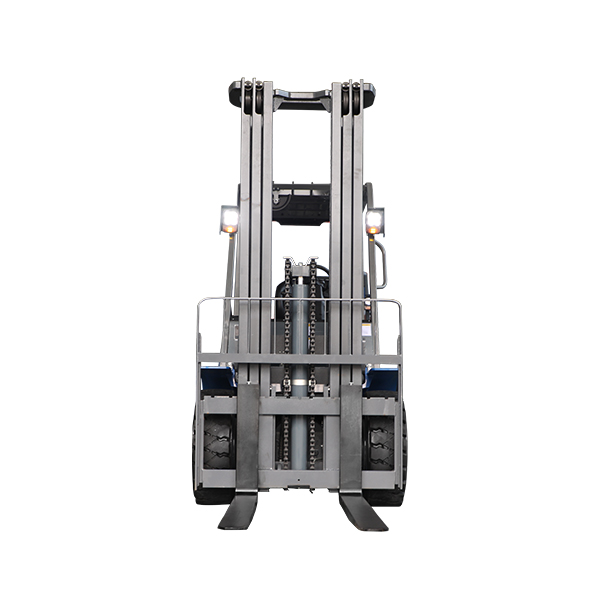

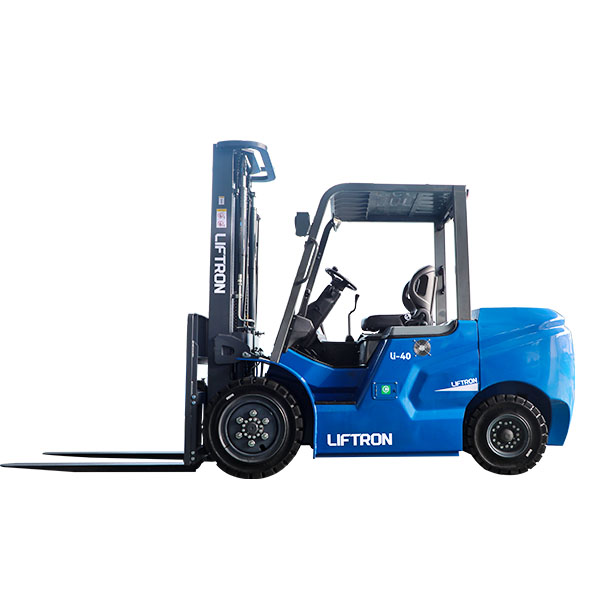

GALLERY
DIMENSIONS
Rated Lifting Capacity
3000(kg)
Ｍax Lifting Speed
(No Load/Full Load)
380/320(mm/s)
Maximum Travel Speeds
(No Load/Full Load)
14/12.5(km/h)
Min Turning Radius
2537(mm)
Weights
(With Battery)
4260(kg)
Length
(NO Fork)
2840(mm)
WidthxHeight
1240(mm)
Height
2115(mm)
Fork Size
(Lx W xT)
1070*120*45(mm)
Hydraulic System Working Pressure
18(MPA)
Rated Lifting Capacity
3500(kg)
Ｍax Lifting Speed
(No Load/Full Load)
380/300(mm/s)
Maximum Travel Speeds
(No Load/Full Load)
14/12.5(km/h)
Min Turning Radius
2537(mm)
Weights
(With Battery)
4650(kg)
Length
(NO Fork)
2840(mm)
WidthxHeight
1240(mm)
Height
2115(mm)
Fork Size
(Lx W xT)
